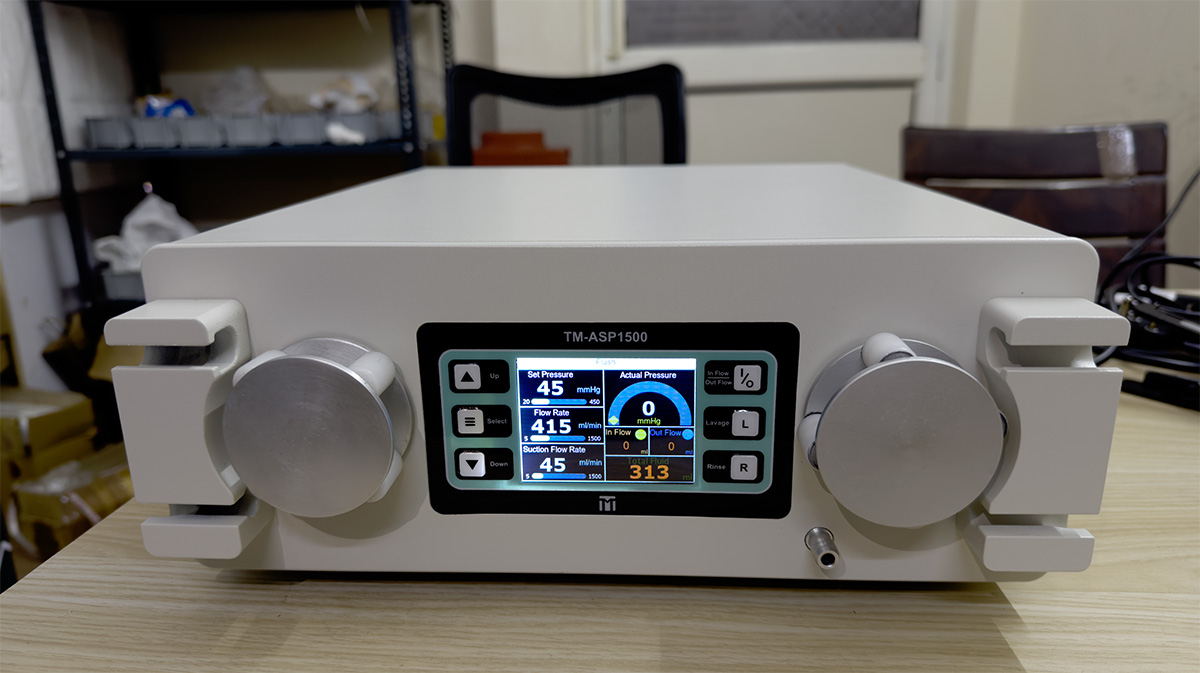

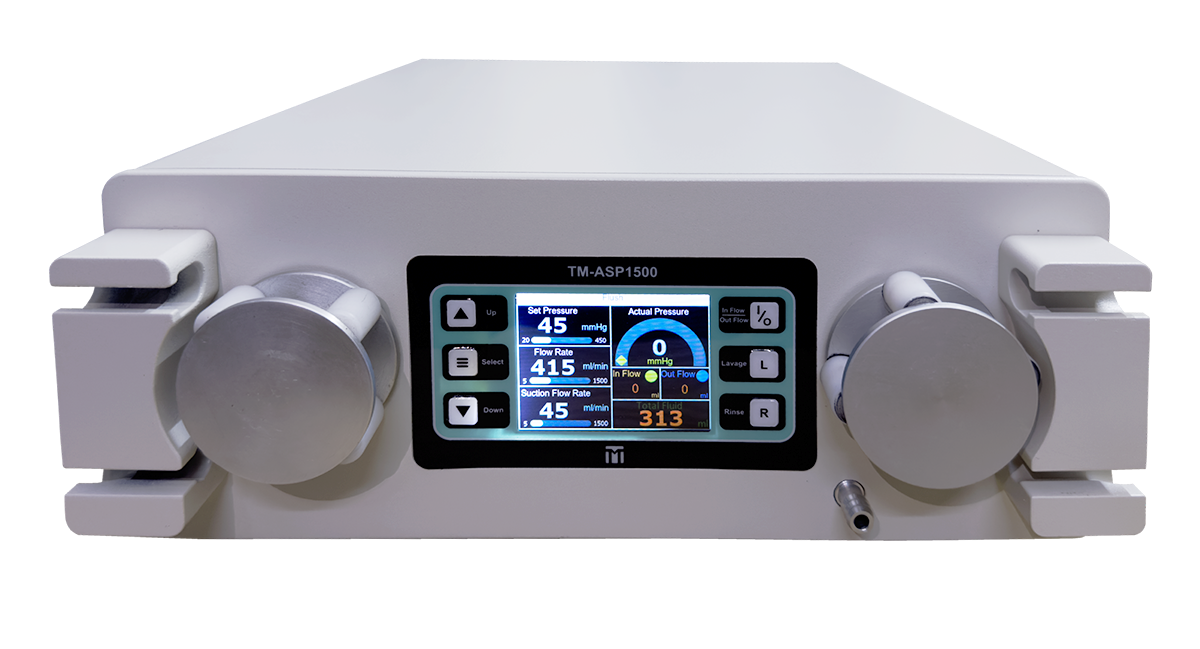

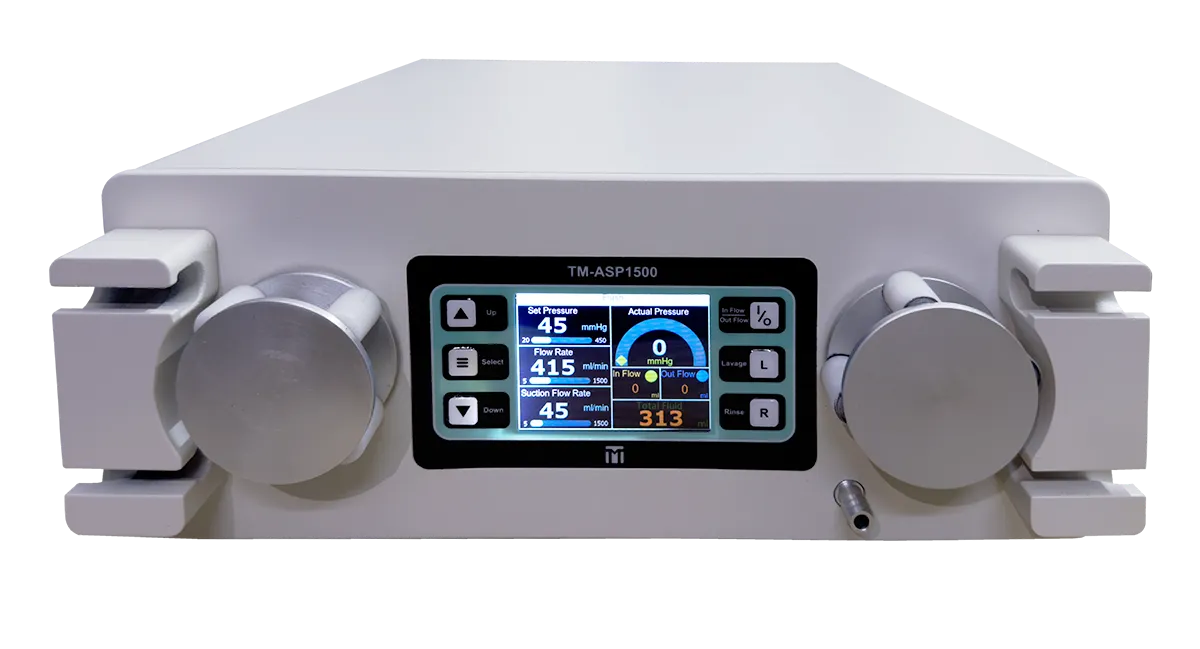

Mediflow DualWave Arthroscopy TM-ASP1500

The Thormos DualWave Arthroscopy Pump (TM-ASP1500) is designed for safe and precise fluid management in arthroscopic surgeries. By regulating inflow and outflow, it maintains clear visualization of the joint space, ensures continuous irrigation, and supports effective tissue rinsing. Ideal for orthopedic and sports medicine procedures, the system provides real-time monitoring of fluid balance, intuitive operation, and consistent performance—delivering safety and confidence in every procedure.

  • Why Choose Mediflow DualWave Arthroscopy TM-ASP1500 ?


    While global leaders set high standards in medical technology, Thormos goes a step further by combining innovation with affordability. Our devices are Made in India, developed to meet international benchmarks, and built to deliver high performance with lower ownership costs.


    The Thormos DualWave Arthroscopy TM-ASP1500 is more than just a device—it’s a step toward making advanced healthcare accessible, reliable, and affordable.

KEY FEATURES

🔹 Dual-Wave Irrigation & Suction

Delivers powerful performance with 1500 ml/min irrigation and 1000 ml/min suction, ensuring efficient fluid management during arthroscopic procedures.

🔹 Precision Pressure Control

Offers fast, accurate adjustments with a wide pressure range of 20 mmHg to 450 mmHg, maintaining stable cavity distension for optimal outcomes.

🔹Foot Switch Activation

Enables a unique feature for clear visualization of the cavity, giving surgeons hands-free control for greater convenience and focus.

🔹 Safety Monitoring

The integrated display tracks total fluid consumption, helping prevent fluid overloading and enhancing patient safety.

🔹 Quiet Operation

Engineered for low noise levels, creating a calm surgical environment that supports concentration and precision.

🔹 Boost Functions

LAVAGE Button: Temporarily increases pressure to 150% of the set value for 60 seconds for improved flushing.

RINSE Button: Enhances outflow by 200 ml/min for 60 seconds, ensuring rapid clearing of the surgical field.

🔹 User-Friendly Interface

Simple, intuitive design with easy-to-use controls and advanced features for smooth, efficient operation.

🔹 Optimal Visualization

Provides clear and stable visualization throughout procedures, supporting surgical precision and efficiency.

TECHNICAL SPECIFICATIONS

🔹 Electrical Specifications

Voltage Range: 100 – 240 V~

Supply Frequency: 50/60 Hz

Protection Class: IP21

🔹Operating Conditions

Temperature: +10 °C to +40 °C

Relative Humidity: 30% – 75%

Air Pressure: 70 – 106 kPa

Max. Operating Altitude: 3000 m above sea level

🔹Storage, Transport & Shipping Conditions

Temperature: –20 °C to +60 °C

Relative Humidity: 10% – 90%

Air Pressure: 70 – 106 kPa

🔹Adjustable Values / Ranges

Irrigation Flow Range: 05 – 1500 ml/min (max. flow)

Suction Flow Range: 100 – 1500 ml/min (max. flow)

Pressure Range: 20 – 450 mmHg (default 50 mmHg at startup)

🔹Physical Specifications

Dimensions (W × H × D): 330 × 140 × 410 mm

Weight: 11 kg

🔹Accessories

Irrigation Tube Set & Suction Tube Set: 3 m length

Power Cable: 3 m length

Foot Switch: 3 m cable length
