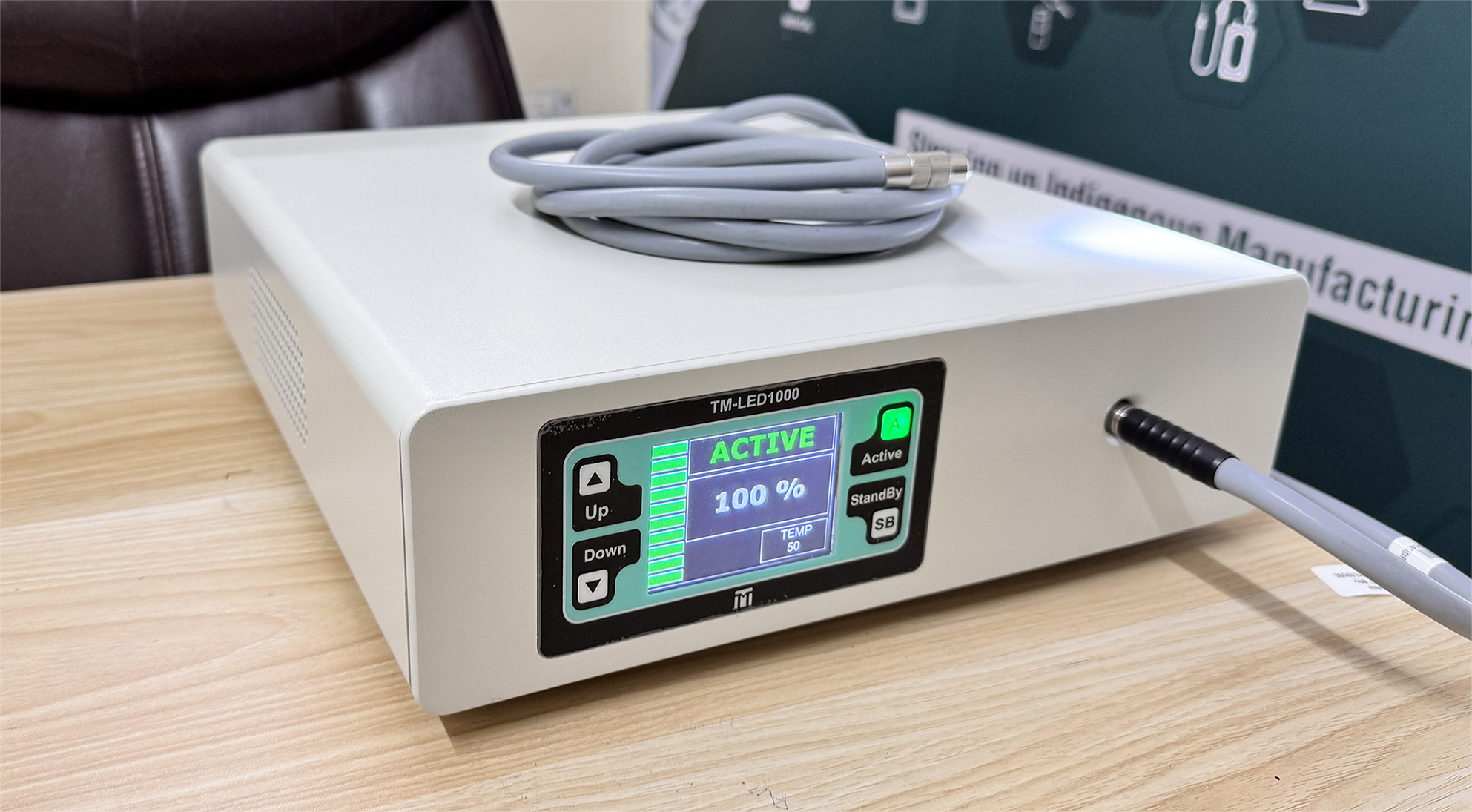

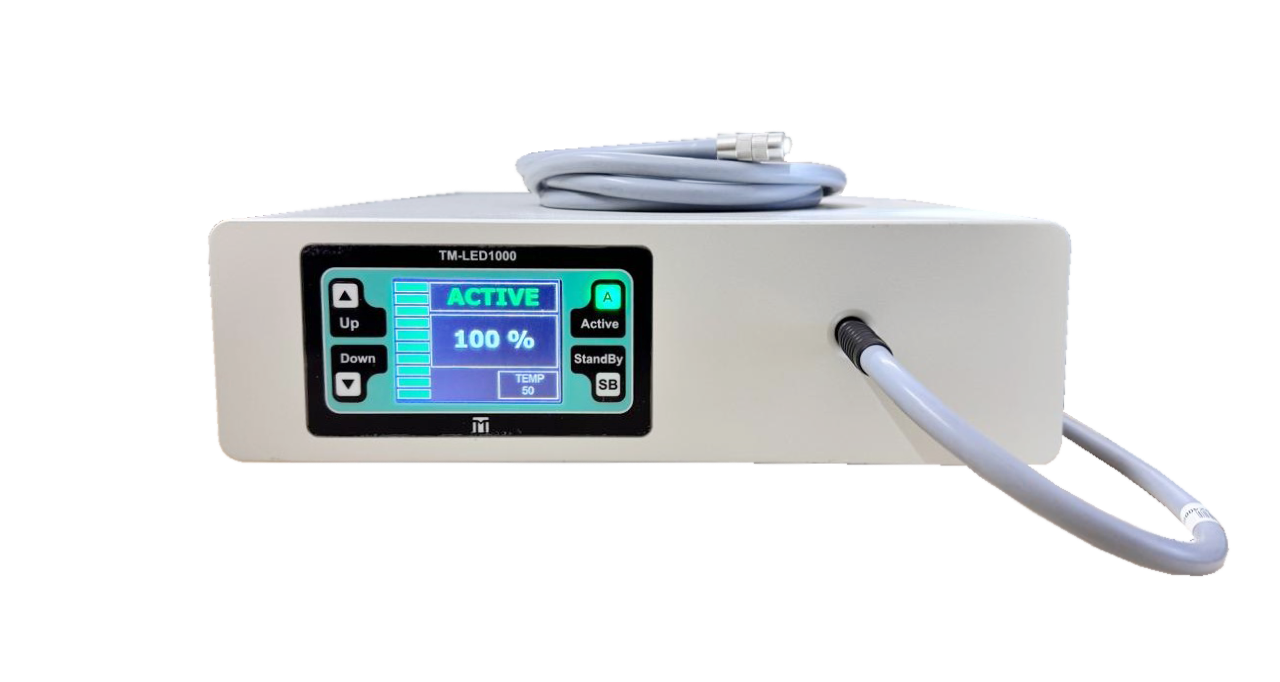

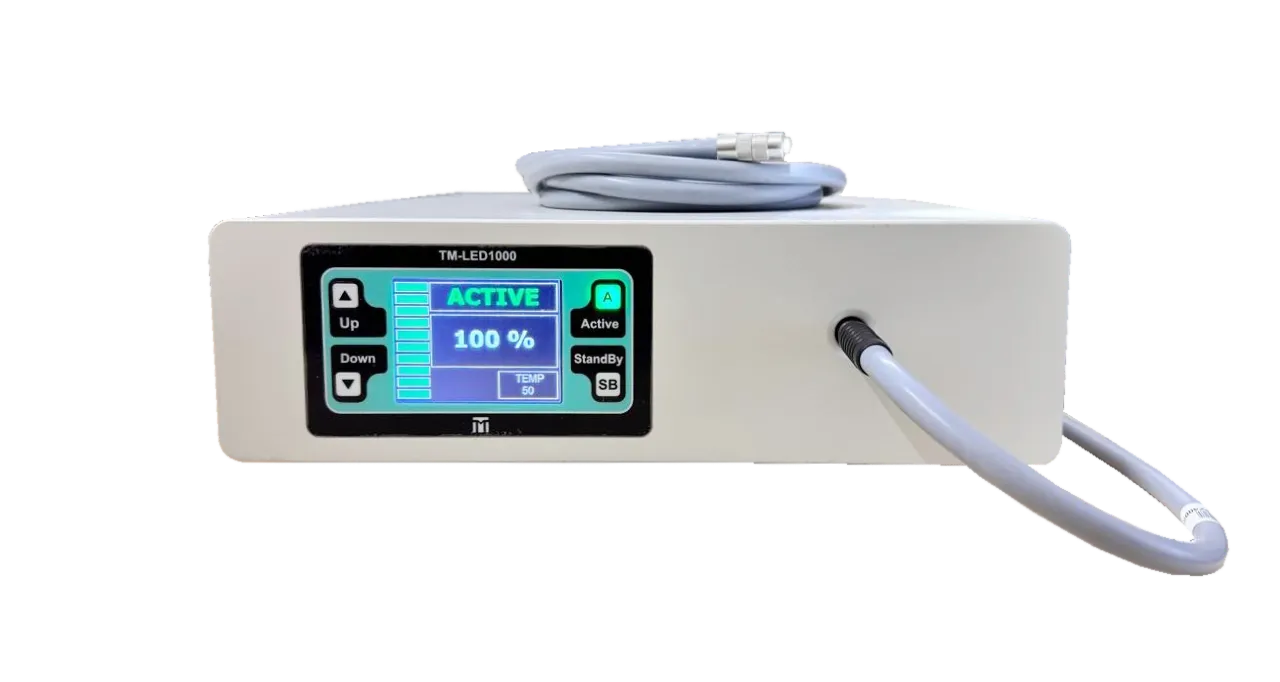

MediLux Surgical Illuminator Source TM-LED1000

The Thormos MediLux (TM-Led1000) Surgical Illuminator is designed to deliver bright, focused, and reliable illumination for operating theatres. With a high-performance LED module producing 3600 lumens, it ensures consistent light quality, enabling surgeons to achieve accuracy and precision during every procedure. The MediLux offers exceptional optical clarity, enhancing visibility and supporting superior image quality. Its adjustable brightness allows seamless adaptation to different surgical environments, while the built-in overheat auto cut-off ensures safety and uninterrupted performance.

  • Why Choose Surgical Illuminator Source TM-LED1000 ?


    While global leaders set high standards in medical technology, Thormos goes a step further by combining innovation with affordability. Our devices are Made in India, developed to meet international benchmarks, and built to deliver high performance with lower ownership costs.


    The Thormos Surgical Illuminator Source is more than just a device—it’s a step toward making advanced healthcare accessible, reliable, and affordable.

KEY FEATURES

🔹 High-Intensity Illumination

Delivers up to 3600 lumens of bright, focused light, ensuring optimal visibility during complex surgical and endoscopic procedures.

🔹 Daylight-Optimized Color Temperature

Provides 6500K light output, replicating natural daylight for true-to-color visualization and enhanced surgical precision.

🔹 Consistent Light Quality

Ensures uniform illumination with precise optical specifications, supporting accurate visualization and superior image clarity.

🔹 Adjustable Brightness Control

User-friendly controls allow seamless adaptation to different surgical environments and procedural requirements.

🔹 Enhanced Safety

Built-in automatic overheat cut-off system protects both device and patient, ensuring uninterrupted performance..

🔹Compact & Ergonomic Design

Lightweight, space-saving design integrates smoothly into operating theatres without compromising performance.

🔹 Reliable & Durable

Engineered for continuous, long-term use with a approx 50,000-hour LED lifespan, delivering dependable performance case after case.

TECHNICAL SPECIFICATIONS

🔹 Electrical Specifications

Voltage Range: 100 – 240 V~

Supply Frequency: 50/60 Hz

Protection Class: Class I

Power Consumption: 120 W

IP Rating: IP20

🔹 Optical Specifications

Illumination Intensity: Approx. 2,700,000 Lux

Brightness Control: 10-step dimming for precise intensity adjustment

Color Temperature: 6500 K (daylight equivalent)

Color Rendering Index (CRI): 75

LED Lifetime: ~50,000 hours

Fibre Optic Connector: Universal, compatible with major brands

🔹Safety Features

Overheat Protection: Automatic cut-off at unsafe temperature levels

🔹Operating Conditions

Temperature: +10 °C to +40 °C

Relative Humidity: 30% – 75%

Air Pressure: 70 – 106 kPa

Max. Operating Altitude: 3000 m above sea level

🔹Storage, Transport & Shipping Conditions

Temperature: –20 °C to +60 °C

Relative Humidity: 10% – 90%

Air Pressure: 70 – 106 kPa

🔹Physical Specifications

Dimensions (W × H × D): 330 × 95 × 410 mm

Weight: 7 kg

🔹Accessories

Power Cable: 3 m length

Fibre Optic Cable: 3 m cable length
